Our in house brand, trusted since 1993’s for it’s supreme quality and reliability in various industries that require premium quality wire meshes.
With over 30 years experience of manufacturing industrial wiremesh, SF Enterprises Wire Mesh have supplied SS Wire Mesh into an almost every industries and applications. Stainless Steel Wire Mesh is our in-house production, marketed under Supreme Brand. (It comes along with a Test Certificate)

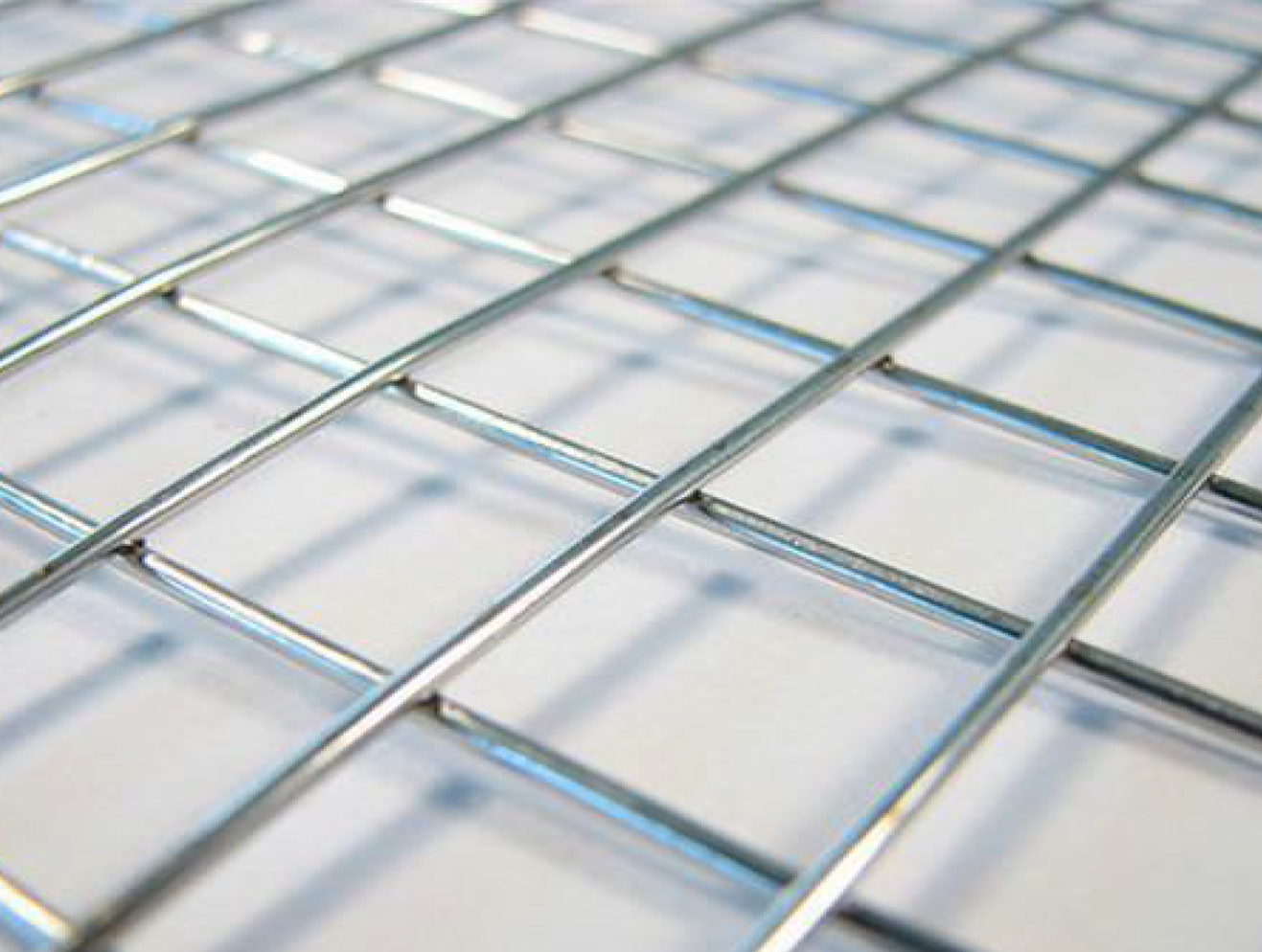

Stainless Steel Wire Mesh can offerwide ranging characteristics dependent on the configuration of wire thickness in relation to aperture size, as well as type of weave, and can vary in texture from being as fine, soft and flexible as silk to being as rigid as steel plate. Many of the properties of Stainless Steel Wire Mesh are not available using alternative metal media.
We offer the full range of specifications from 2600 Micron aperture down to 1 micron nominal aperture. Manufactured in Mild Steel (M.S.), Galvanized Iron (G.I.), Stainless Steel 304, 316 (S.S.), Aluminum (AL.) and other metals in all possible thickness.
| Opening | : | 1 Micron to 2600 micron |
| Wire Dia | : | 50 SWG (0.025 mm) to 24 SWG (0.588 mm) |
| Width’s | : | Upto 5 Mtr (16 Ft 4 Inches) |
| Weaving | : | Plain Weave Dutch Plain Weave |
| Patterns | : | Twill Weave Dutch Twill Weave |
| Material | : | Stainless Steel (Grade – 410, 304, 202 etc), Spring Steel - High Carbon Steel, Galvanized Iron (G.I.), Mild Steel (M.S.) Wire, Brass, Copper etc. |
| Quality | : | All S.S. Material comes with a Test Report. |
| AISI Grade | Stainless Steel Wire Chemical Composition (%) | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | 0.045 | 1 | 2 | 0.045 | 0.03 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | 0.12 | 0.75 | 1 | 0.04 | 0.03 | 0.6 | 16.00~18.00 | - |
| 430A | 0.06 | 0.5 | 0.5 | 0.03 | 0.5 | 0.25 | 14.00~17.00 | - |
