Woven Wire

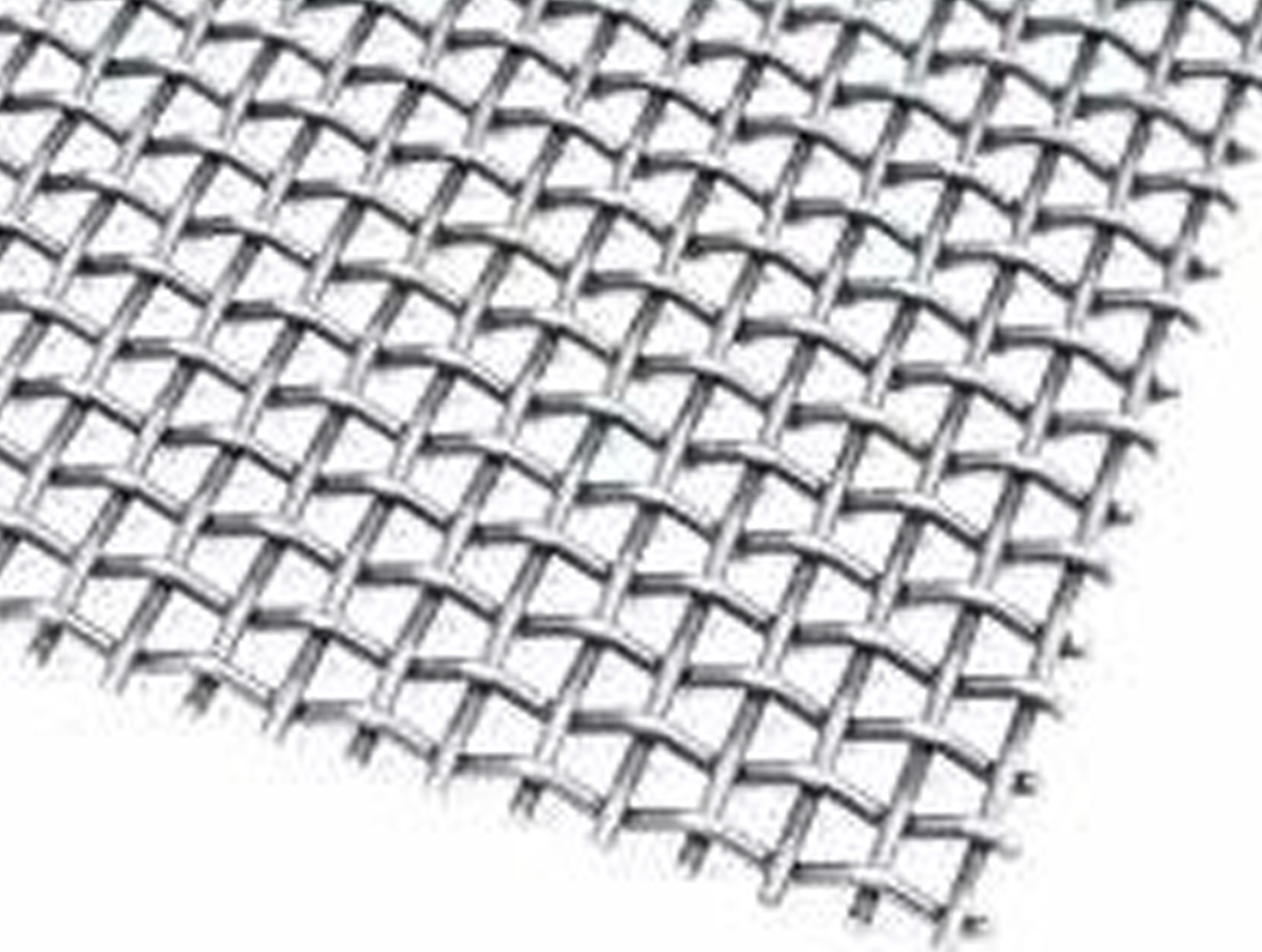

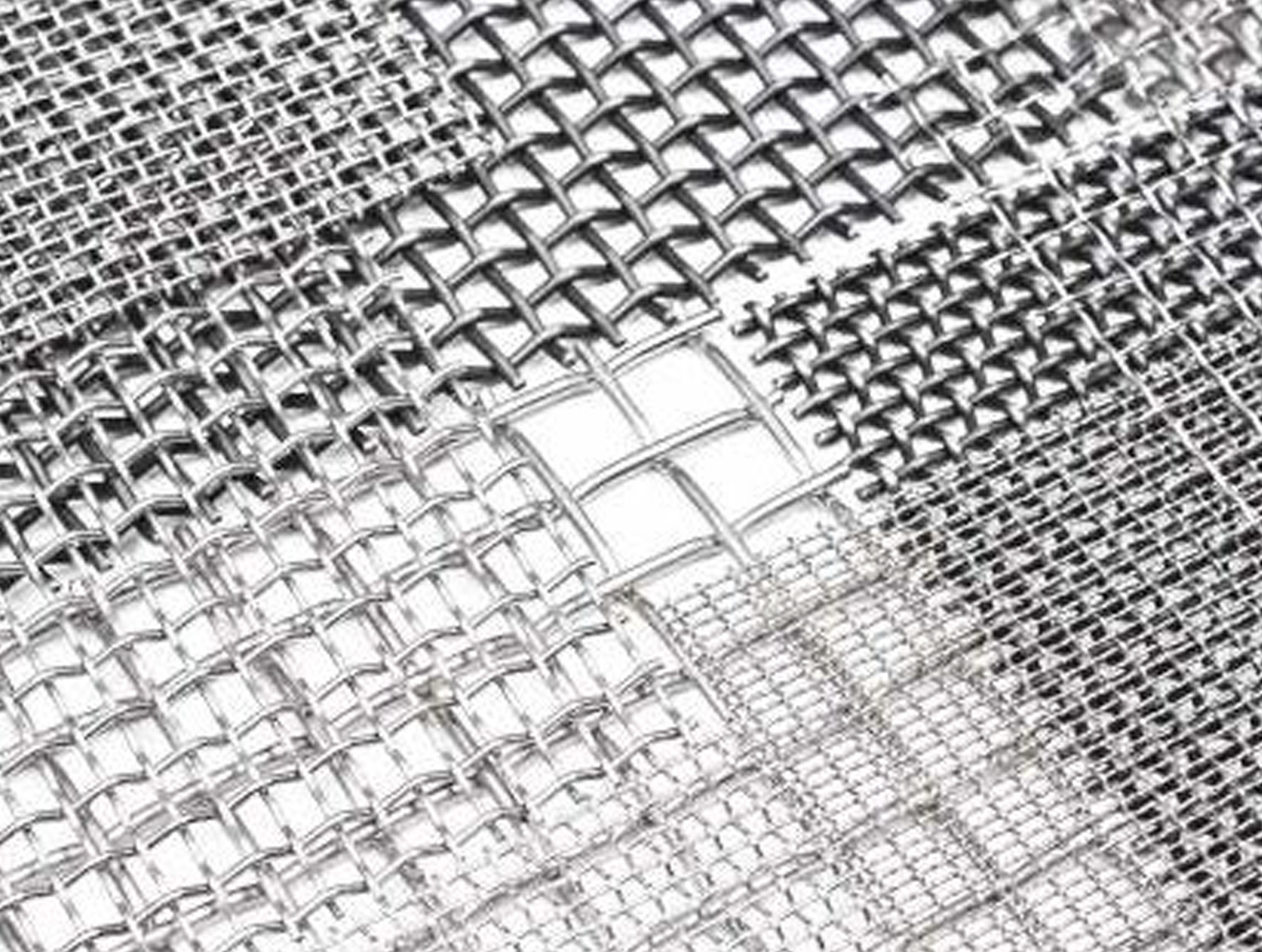

We have been engaged in producing and selling of Woven Wire mesh for over 30 years, marketed under Supreme Brand. A fundamental class of steel mesh is woven wire. Weaved wire with square and rectangular meshes are part of our manufacturing line; they come in single-crimp and double-crimp versions. We also offer the best material options based on a large variety of premium steels of certain species, depending on the application and operating circumstances. We provide woven wire in rolls, sheets, or with hooks so that customers may mount them on sifters and other equipment.

Our in house Supreme brand, trusted since 1993’s for it’s supreme quality and reliability in various industries that require premium quality metal meshes.

Manufactured in Steel (M.S.), Galvanized Iron (G.I.), Stainless Steel 304, 316 (S.S.) Aluminum (AL.) and other metals.

Usage:

  •   Industrial: Sieving, separation and filtration, machine guards, ventilation, security.
  •   Agricultural: Animal flooring, fencing, insect control, sieving and grading.
  •   Architectural & artistic: Decorative screening, balustrade, walkways, lighting, sculpture.

Term Definitions:

  •   Style Dimension - Nominal dimension Short Way of Design (SWD).
  •   Design Size - Actual dimension SWD and LWD. Measured from a point to a corresponding point on the following design.
  •   (SWO) Short Way of Opening and (LWO) Long Way of Opening.
  •   Strands - The sides of the Woven Wire design.
  •   Strand Thickness - Gauge thickness of Woven Wire.
  •   Strand Width - Amount of metal fed under dies to produce one strand.

Technical Specifications:

Specifications Width
(Mt)		 Length
(Mt)		 Weight
(Kg/M2)
Strand Thickness(mm) Distance
Short(mm)		 Distance
Long(mm)		 Strand Width(mm)
0.5 2.5 4.5 0.5 0.5 1.0 1.80
0.5 10.0 25.0 0.5 0.6 2.0 0.73
0.6 10.0 25.0 1.0 0.6 2.0 1.00
0.8 10.0 25.0 1.0 0.6 2.0 1.25
1.0 10.0 25.0 1.1 0.6 2.0 1.77
1.0 15.0 40.0 1.5 2.0 4.0 1.85
1.2 10.0 25.0 1.1 2.0 4.0 2.21
1.2 15.0 40.0 1.5 2.0 4.0 2.30
1.5 15.0 40.0 1.5 1.8 4.0 2.77
1.5 23.0 60.0 2.6 2.0 3.6 2.77
2.0 18.0 50.0 2.1 2.0 4.0 3.69
2.0 22.0 60.0 2.6 2.0 4.0 3.69
3.0 40.0 80.0 3.8 2.0 4.0 5.00
4.0 50.0 100.0 4.0 2.0 2.0 11.15
4.0 60.0 120.0 4.0 2.0 7.5 4.00
4.0 80.0 180.0 4.0 2.0 10.0 3.00
4.0 100.0 200.0 4.0 2.0 12.0 2.50
4.5 50.0 100.0 5.0 2.0 2.7 11.15
5.0 50.0 100.0 5.0 1.4 2.6 12.39
5.0 75.0 150.0 5.0 2.0 10.0 3.00
6.0 50.0 100.0 6.0 2.0 2.5 17.35
8.0 50.0 100.0 8.0 2.0 2.1 28.26
